Smidge PCBs and XIAOs

$2.50 - $21.00
Smidge PCBs and XIAOs

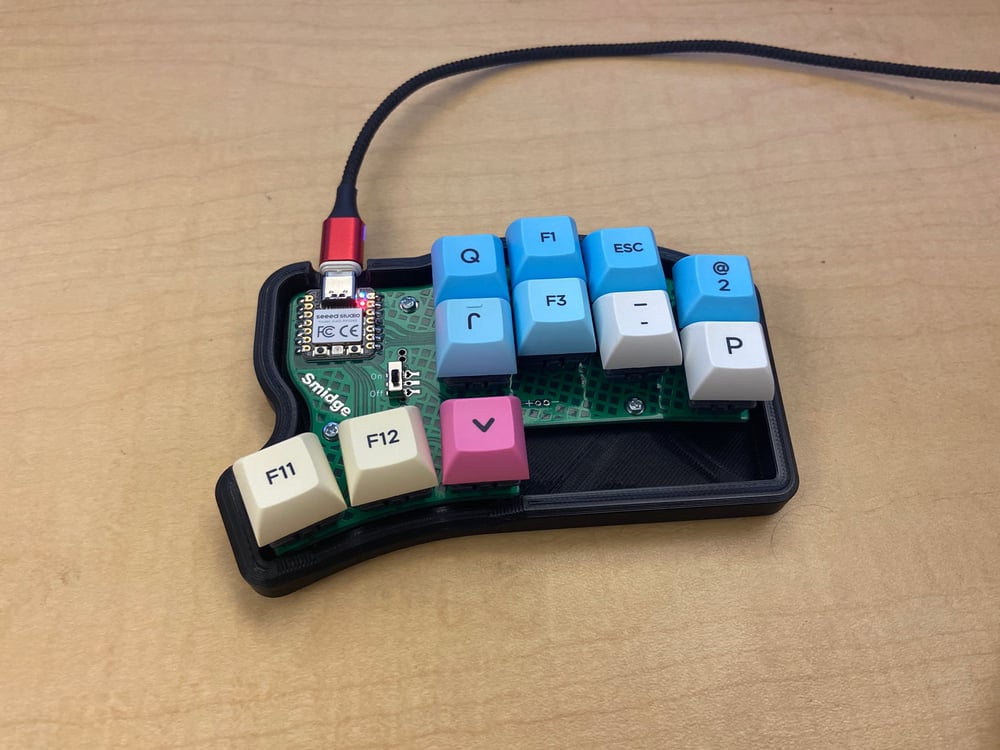

Smidge is an 11-key one-handed keyboard that is powered by a XIAO controller module.
The layout comes directly from the range of motion of a human hand, and the PCBs run ARTSEY-inspired firmware.
The PCB supports MX (3 and 5 pin), Choc (V1 and V2), Alps/Matias, and KS-33/Nuphy switches.

The XIAO RP2040 module runs QMK/Vial, and the XIAO nRF52840 runs ZMK and is wireless bluetooth.

A low-pro plateless tray-mount case design is open-source and available here (along with firmware):

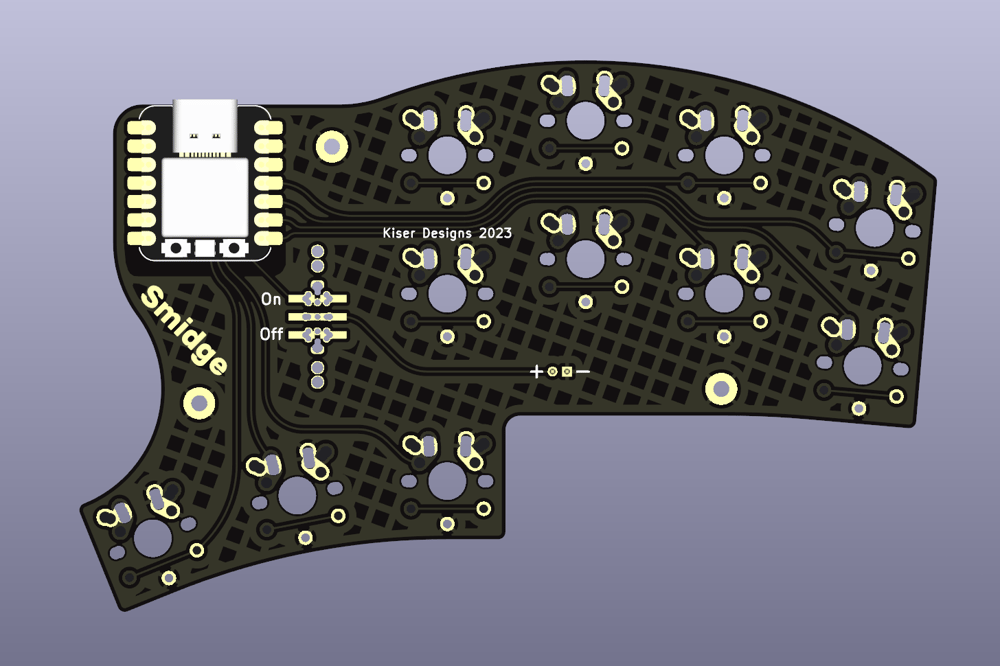

PCBs are reversible, and have pads for a lipo battery if using the XIAO nRF. They will be **BLACK** in this group-buy, intead of the green pictured. Battery not included. Power switch included.

If you want the Xiao to be pre-soldered, please leave a comment during checkout which hand you would like.

Just the PCB: $5
PCB+XIAO RP2040: $12
PCB+XIAO nRF52840: $18
Have me solder the XIAO to the PCB for you: +$5
Black 3D-printed case with threaded inserts: $2.50

GB ends on Nov 24, 2023. Shipping in Jan (or sooner, depending).
